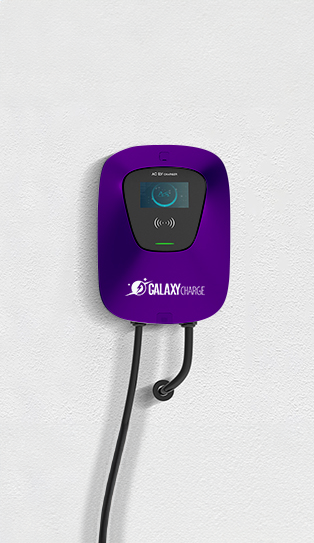

AC Charger 7KW—22kW
7KW：Single Phase 220V
22KW：Three-phase 380V
Connector：type2，type1，GBT（Compatible with all EV models）
Shell material：ABS+PC
Size:270*132*362mm(W*D*H)
Protection:IP55
Input:220VAC±20%
Voltage frequency:50Hz±5Hz
Output current:32A
Output power:7KW/22KW
Display:4.3 Inch Led
Cable length:5 Meters (Custom)
Communication method:Wifi, Bluetooth
Operating temperature: -30℃-+60℃
Packing list:510*350*26mm 6kgs
Certifications: CE , Safety Compliance Certificate
Payment Support: GCash, Maya, Credit Card, RFID

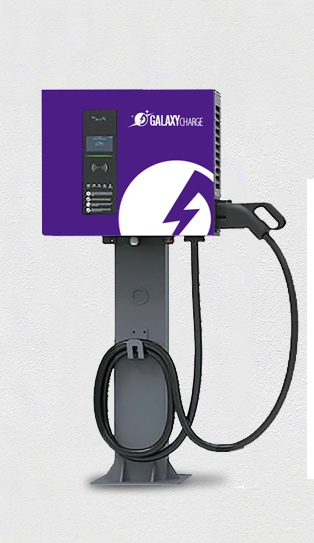

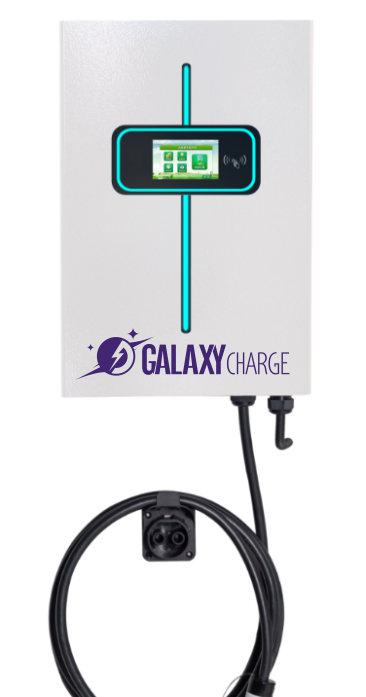

DC Fast Charge 40KW
Way to install Wall-mounted / Column-mounted
CCS/CHAdeMO/GBT
Product size 460*166*680MM
Working voltage 480V
Incoming frequency 50HZ-60HZ
Output voltage 150V-1000Vdc
Output current 125A
Length of the charging cable 5 meters
Man-machine interaction 4.3-Inch color touch screen
defensive function IP54/Short circuit, over-temperature, over-current, over-voltage etc.
Application: Highway Rest Stops, Large Shopping Malls, Fleet Hubs
Certifications: CE , Safety Compliance Certificate
Payment Support: GCash, Maya, Credit Card, RFID, Fleet Account

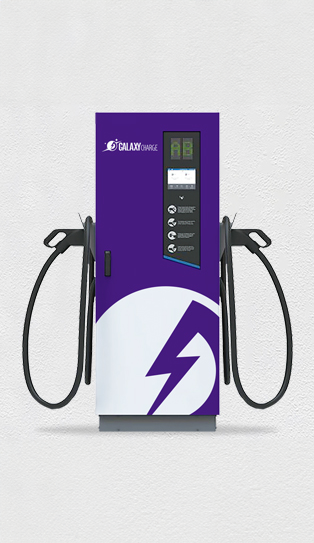

DC Fast Charger 60KW-240KW
Input:380VAC±20%/50Hz±5Hz
Output voltage range:150VDC-1000VDC
Mechanical strength:20J
Dimensions (WxDxH):700x550x1 800mm
Human-computer interaction:7 inch touch color LCD screen
Wire length:5 meters
Background communication interface:Ethernet
Background agreement:Background agreement
Communication interface (reserved):CAN, RS485
Optional:4G communication/color customization/background
protocol customization
Noise level:≤65dB
Application: Major Transportation Hubs, EV Dealerships, Large Commercial Complexes
Certifications: CE , Safety Compliance Certificate
Payment Support: GCash, Maya, Credit Card, RFID, Fleet Account

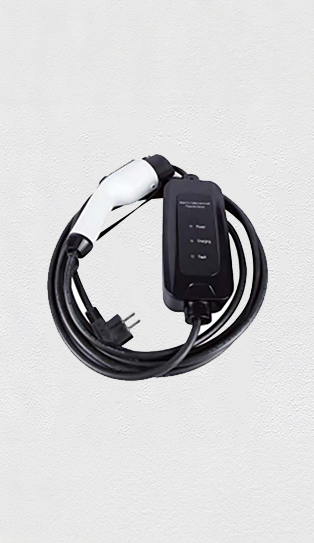

Portable EV Charger
Rated Current 8A-10A-13A-16A116A-26A-32A
Operating Freqyebcy 50Hz or 60Hz
Insulation Resistance >10MQ
Level of Pretection IC-CPD IP67,Vehicle Connector IP54
Contact Resistance ≤0.5mQ
Insection&Extraction Force ≤100N
Operating Temperature -40°C~+50°C
Storing Temperature -40C~+80°C
Operating Humidity 5%~95RH
weight 2.1kg

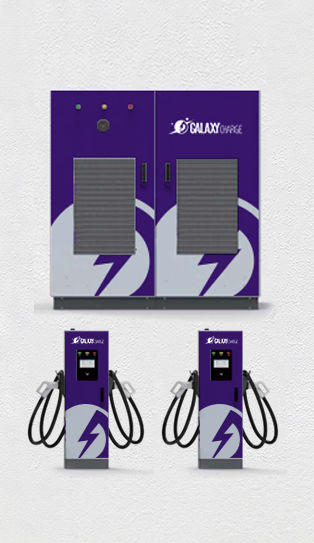

Dynamic Split Charging System 240kW/360kW
DC charging plug options CCS2(GB/T CCS1 /CHAdeM0 Optional )
VoltageMax 1000 VDC
Standby power 25 W
Operating Temperature -30C-+50C
Storage Temperature -40C-+75C
Operating Humidity 5%-95% RH, Non-Condensing
Operating Altitude ≤ 2000m
IP,IK Level IP54,IK10
Lightning protection LevelC
Backend Ethernet ( 4G Optional )
Charging Protoco IS0 15118 . DIN 70121
OCPP OCPP 1.6J(OCPP2.x Coming soon)
Electrical protections Charging cable temperature monitoring, Earth leakage monitoring
Electrical safety IEC 61851-1,IEC 61851-23
EMC. Harmonics IEC 61851-21-2

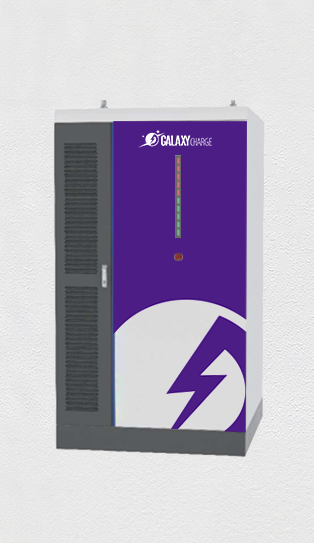

Battery Energy Storage System 100KWH-4MWH
Pilot Integrated ESS is highlycombined with LFP battery system
BMS, PCS, EMS, liquid coolingsystem fire protection system,
power distribution and otherequipment inside the cabinet.
Provide economic, safe, intelligent,
and convenient electricity solutionsfor industrial and commercialusers.

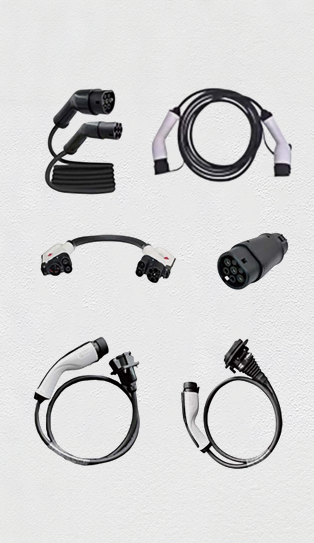

Adapter Connector
Type 2 to GB/T
CSS 2 to GB/T
CCS 2 to CCS1
Type 1 to Type 2
Type 2 to Type 2
Type 1 to GB/T
Type 2 to Type 1
AC Charger + Installation
（Personal installation）
Basic Installation Services
– On-site technical evaluation
– Electric vehicle charger 7 kW with 5M charging cable
– Installation and connection of wall connectors
– Supply and installation of earth leakage protectors, disconnectors, meters
– Supply and installation of cable (15metres)
– Assistance will be given in applying for power supply if insufficient.
Note: If transformers and other materials (electrical and civil) are required, additional charges will apply.
DC Charger + Installation
Equipment: 40-60kW DC charging pile (standard configuration).
Basic Installation: Fix the charging pile and install internal wiring.
Debugging: Power-on test to ensure the equipment can start charging normally.
Civil Engineering and Wiring: Cable laying, trenching, and concrete foundation from the distribution box to the charging pile. Cable lengths exceeding the actual length will be calculated separately.
Software Platform: Provides APP, QR code payment, or back-end management system. (Value-added service)
Brand Licensing: Commercial promotion. (Value-added service)
Warranty: Hardware original manufacturer warranty only (1 year).
AC franchise plan
22KW*2
Construction Plan Design
Construction Services
installation Services
Hardware Maintenance
Chargingpoints available 24/7
24/7 Customer Support
use of GalaxyCharge App
DC franchise plan
40 or 60KW
Construction Plan Design
Construction Services
installation Services
Hardware Maintenance
Chargingpoints available 24/7
24/7 Customer Support
use of GalaxyCharge App
Our Services
We Handle Every Step to Ensure Your Charging Station Runs Smoothly
Step 1: Site Assessment & ConsultationOur team conducts on-site visits to evaluate your location, power capacity, and usage needs, providing a customized solution proposal.

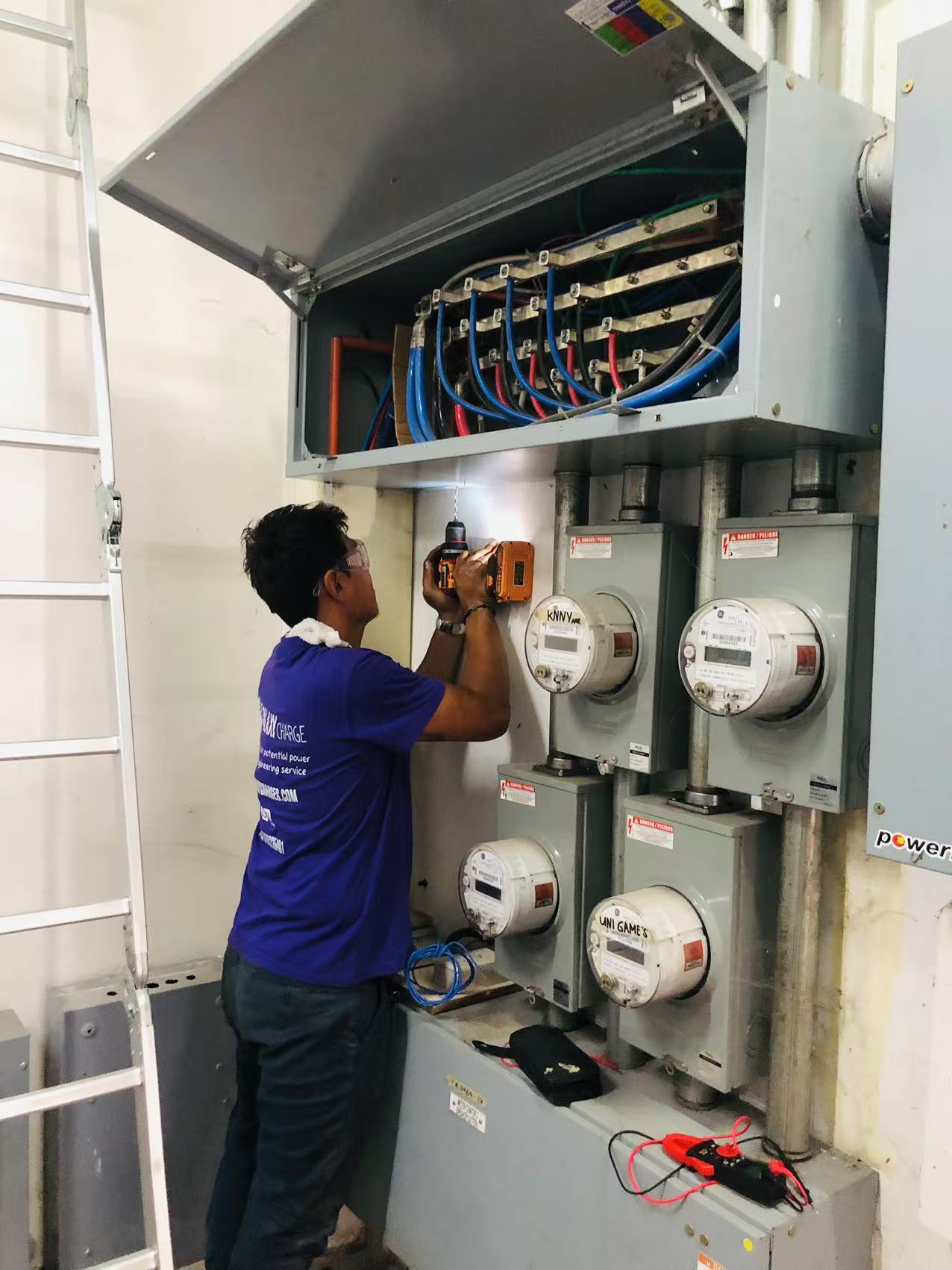

Step 2: Power Application & ComplianceWe assist with power connection applications to local electrical authorities (DLRC) and ensure full compliance with Philippine electrical codes and safety standards.

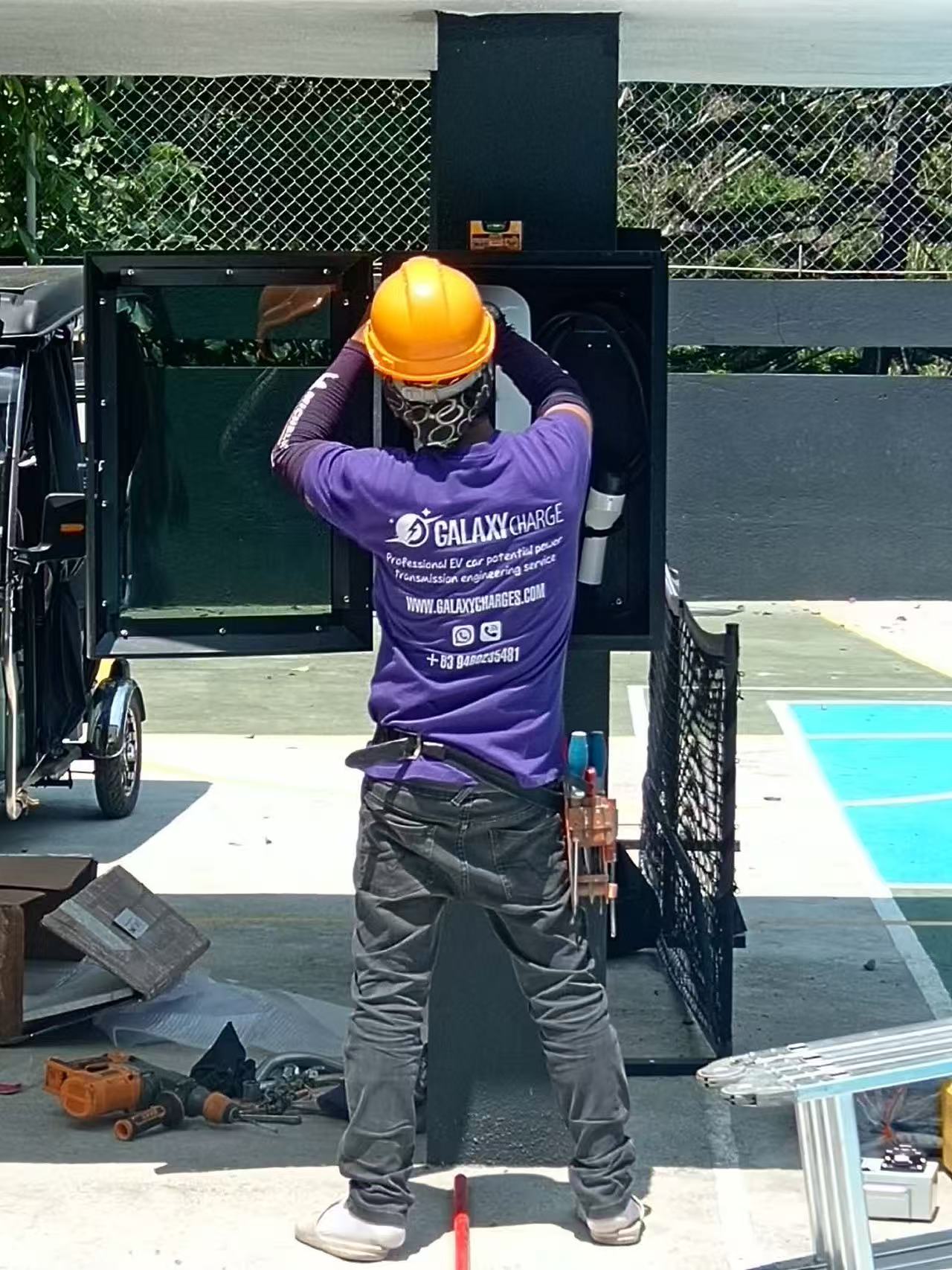

Step 3: Installation & ConstructionOur professional engineering team handles all installation work, including wiring, equipment setup, and testing, with minimal disruption to your operations.
Step 4: Testing & CommissioningWe conduct rigorous testing to ensure the charging station is fully functional, safe, and compatible with all EV models.
Step 5: 24/7 After-Sales & Maintenance Our local maintenance team provides 24/7 support, including fault repair, regular maintenance, and software updates, ensuring 99% operational uptime.
100% in-house developed with a modular, scalable architecture, Galaxy Charge uses EV charging as a trusted entry point to deliver integrated capabilities — from membership & merchant management to event marketing and data-driven insights. Beyond charging, we seamlessly connect users to a growing local services ecosystem.
Together, these form a closed-loop “Charge → Shop → Use → Service” experience — turning one-time users into loyal ecosystem participants. With real merchants, real families, and real community activations (like our Plug Into The Future events and VIP family days), Galaxy Charge doesn’t just enable energy — it builds belonging, trust, and recurring value.
Commercial & Retail Solutions:
Tailored charging stations for shopping malls, supermarkets, and commercial buildings, integrated with parking management systems.
Fleet Charging Solutions:
Dedicated charging infrastructure for taxi fleets (VinFast,GrabElectric, Move It), delivery fleets, and corporate EV fleets.
Residential Solutions:
Compact, user-friendly charging stations for residential communities and apartment buildings.
